FAST Editor

Setup

You can create payment templates using the FAST Editor for adapters and payment methods that support (or require) payment form rendering, as well as email templates for adapters (e.g. Pay-By-Link).

General

When the consumer is redirected to the payment page, the gateway determines which template to use based on the following rules.

The template path contains variables which are determined dynamically:

• LAYOUT_NAME: You can define a Custom Payment Template Layout in the connector settings. If none is specified, the default layout is used. You can also define a layout for email templates for pay-by-link in the Pay by Link tab in the connector's configuration.
• ADAPTER_KEY: Each Adapter requires its own templates. The available placeholders differ for each adapter.
• LANGUAGE: The merchant can include the desired language in the API call (see the Transaction API Documentation). If a template does not exist for the specified language, the default language defined in the connector's configuration is used instead. Languages are specified using 2-letter ISO codes, e.g. "en" for English, "de" for German, "es" for Spanish etc.

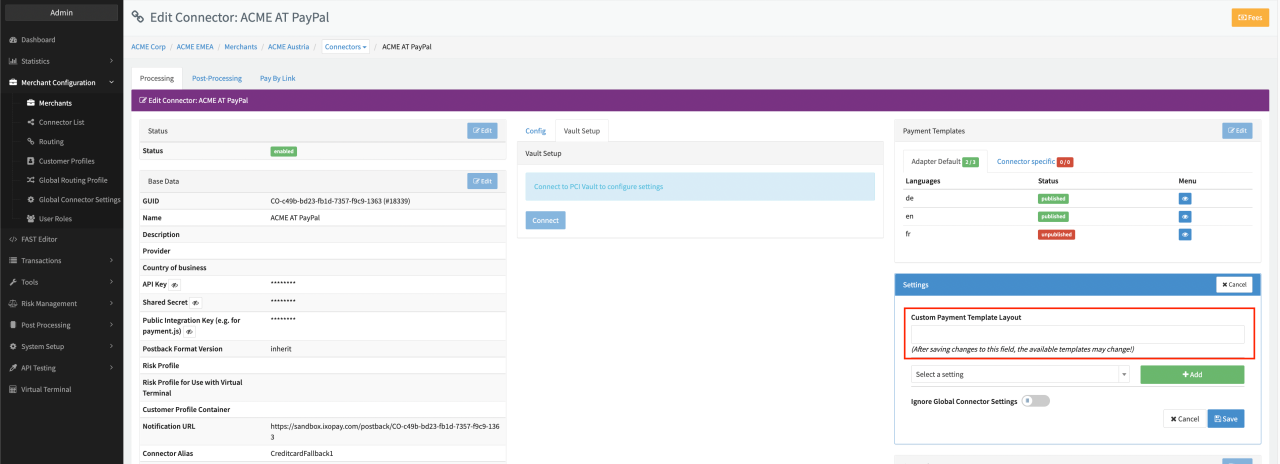

Connector Settings Layout

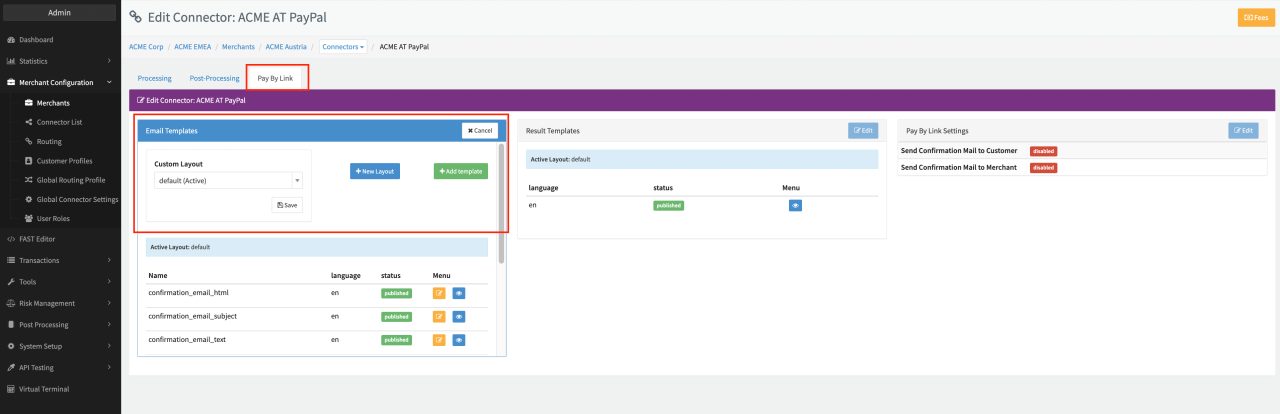

Pay by Link Layout

Adapter Key

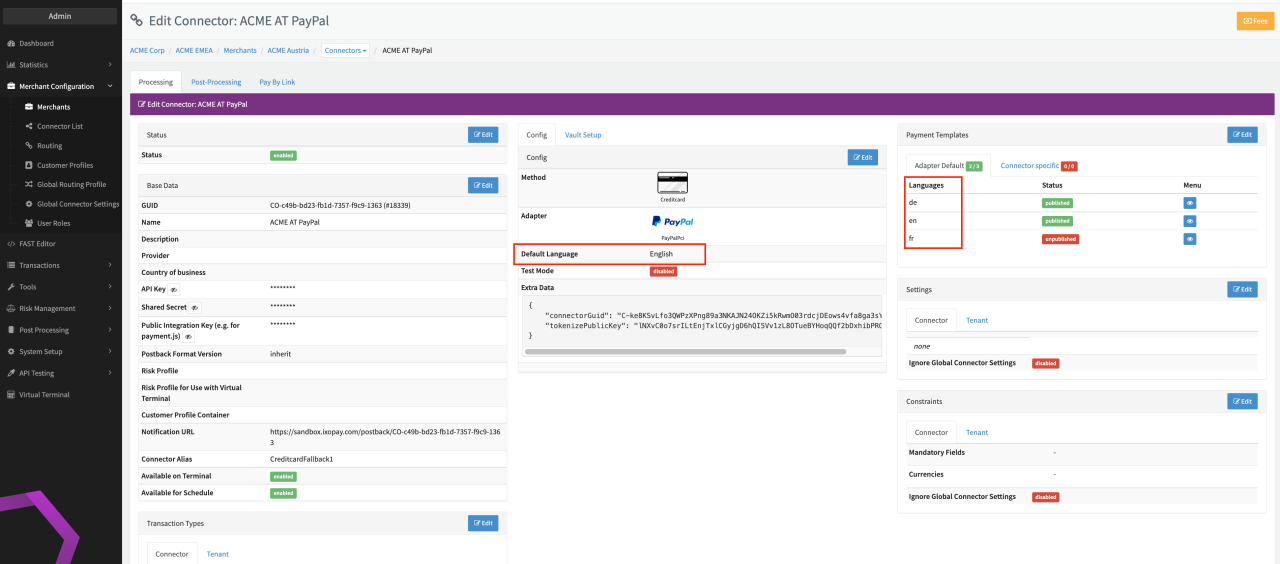

Language

Layouts

Using the LAYOUT_NAME (= the custom payment template layout defined in the Connector Settings or created email template layout in the Pay by Link section), you can set up various templates based on different requirements for your Merchants (e.g. one default, one with inverse colors, one with requiring the address data of the consumer etc.)

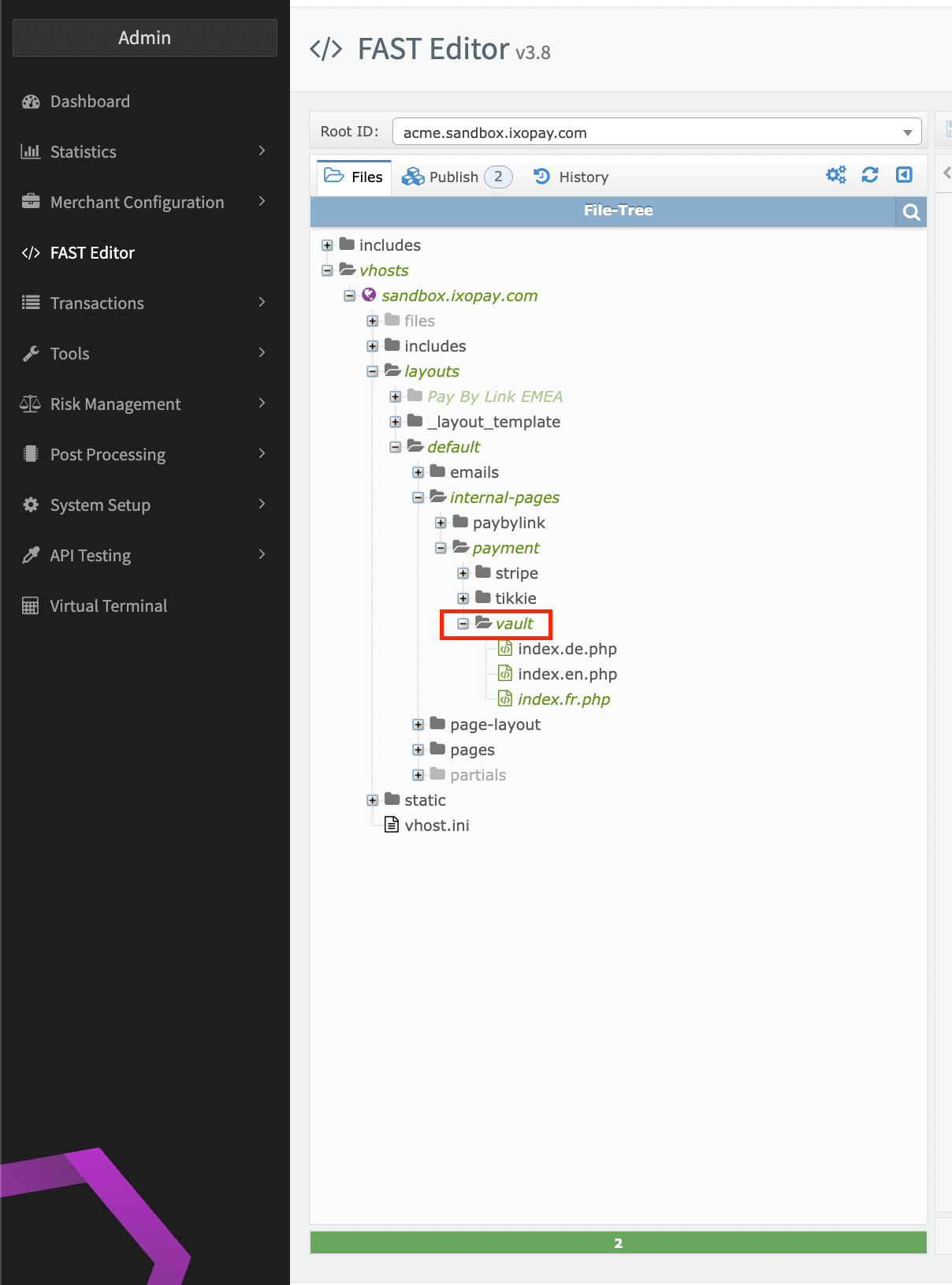

Adapter Key

If created in the Connector Detail Overview the correct Adapter*Key is generated by the Gateway automatically, including the correct path. Keep in mind that PCI adapter are created under the ADAPTER_KEY vault.

The payment template is resolved according to the following Rules:

Priority	Template	Path within FAST Editor
1	Connector-specific with given language	/vhosts/gateway.ixopay.com/layouts/[LAYOUT_NAME]/internal-pages/payment/[ADAPTER_KEY]/[CONNECTOR_GUID]/index.[LANGUAGE].php
2	Connector-specific with default language	/vhosts/gateway.ixopay.com/layouts/[LAYOUT_NAME]/internal-pages/payment/[ADAPTER_KEY]/[CONNECTOR_GUID]/index.[DEFAULT_LANGUAGE].php
3	Adapter-default with given language	/vhosts/gateway.ixopay.com/layouts/[LAYOUT_NAME]/internal-pages/payment/[ADAPTER_KEY]/index.[LANGUAGE].php
4	Adapter-default with default language	/vhosts/gateway.ixopay.com/layouts/[LAYOUT_NAME]/internal-pages/payment/[ADAPTER_KEY]/index.[DEFAULT_LANGUAGE].php

In general it is recommended to create and adapt templates within the embedded (FAST) Editor screen with in the Connector Details Overview - Payment Templates Edit View in order to ensure the correct path and variables to be set by the gateway. Nevertheless you also have the option to use the Fast Editor section itself.

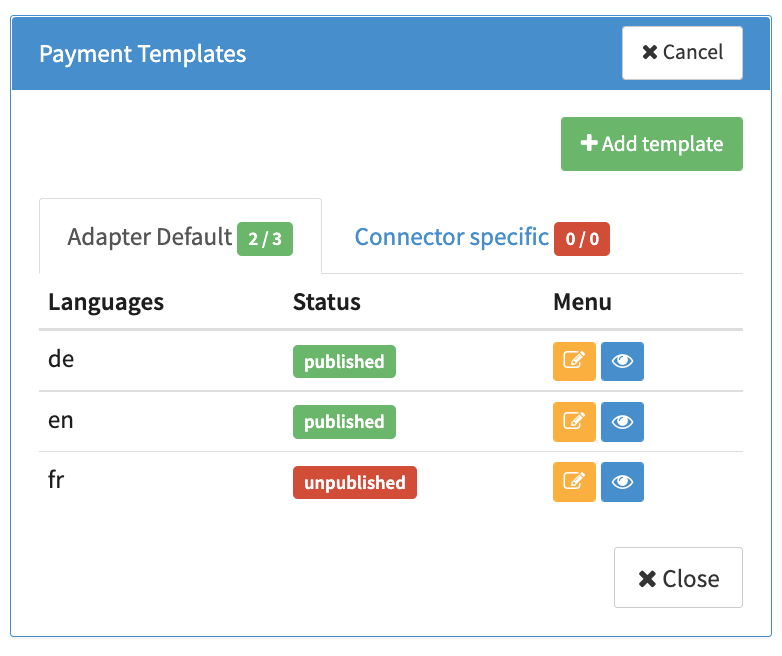

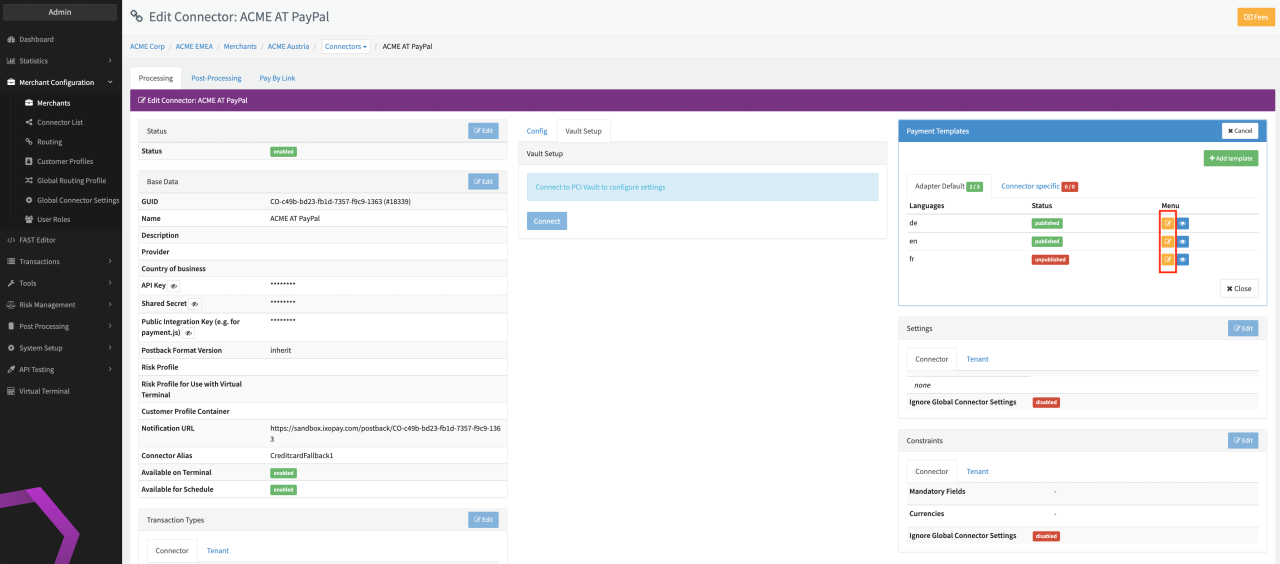

Connector Details Overview - Payment Templates Edit View

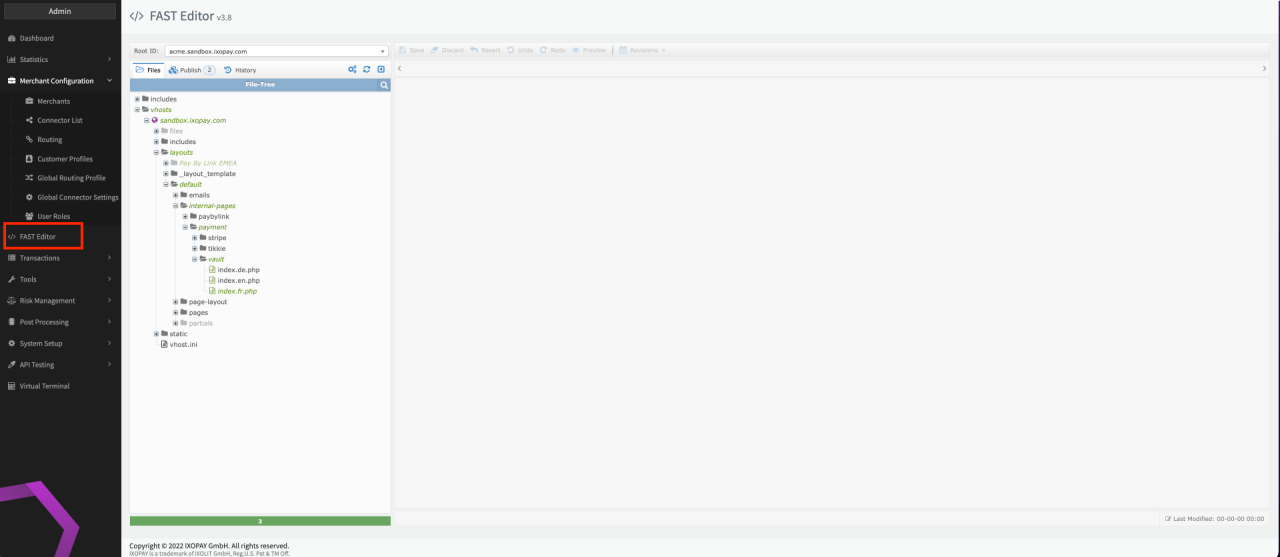

FAST Editor

Placeholders

Each Adapter provides different elements and data for rendering the payment form. These data are inserted in the template using placeholders. A placeholder is embedded by surrounding it with {{ and }} (e.g.: {{ fields.firstname.id }})

For ease of use, you may also use the placeholder helper on the right sidebar of the FAST Editor which should appear when you select a template page. Depending on the Adapter, different fields may be available. E.g. to insert the merchant name, simply click on "name" under the merchant node. It will automatically place {{ data.merchant.name }} into the current cursor position in the Editor.

Some placeholders are generally available, others are available depending on the used adapter. Mandatory, as described below ones MUST always be used within each template:

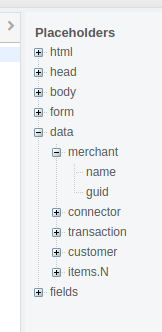

Placeholder Helper

Variable	Mandatory	Placement	Description
html.doctype	Yes	Top of the HTML page	DOCTYPE tag for HTML document
head.metatags	Yes	Within	Metatags used by Adapter implementation
head.css	Yes	Within	CSS Stylesheets used by Adapter implementation
head.js	Yes	Within	Javascripts used by Adapter implementation
body.jsTop	Yes	Directly after	Javascripts used by Adapter implementation
body.jsBottom	Yes	Directly before	Javascripts used by Adapter implementation
form.open	Yes	Within	The opening tag
form.close	Yes	Within	The closing tag
data.merchant.name	No		Name of the Merchant as set up in Admin interface
data.merchant.guid	No		GUID of the Merchant as set up in Admin interface
data.connector.name	No		Name of the Connector as set up in Admin interface
data.connector.guid	No		GUID of the Connector as set up in Admin interface
data.connector.description	No		Description of the Connector as set up in Admin interface
data.transaction.type	No		The Transaction type, one of "Debit", "Preauthorize", "Register", "Payout"
data.transaction.transactionId	No		The Merchant's Transaction ID
data.transaction.token	No		The Transaction token passed by the Merchant (seldom used)
data.transaction.amount	No		Transaction amount
data.transaction.surchargeAmount	No		Sucharge Amount if available
data.transaction.currency	No		Transaction currency (3-letter code)
data.transaction.description	No		Description passed by the Merchant
data.transaction.testMode	No		Whether this is a test Transaction ("true" or "false")
data.customer.identification	No		Customer data
data.customer.first_name	No		Customer data
data.customer.last_name	No		Customer data
data.customer.birth_date	No		Customer data
data.customer.gender	No		Customer data
data.customer.billing_address1	No		Customer data
data.customer.billing_address2	No		Customer data
data.customer.billing_city	No		Customer data
data.customer.billing_postcode	No		Customer data
data.customer.billing_state	No		Customer data
data.customer.billing_country	No		Customer data
data.customer.billing_phone	No		Customer data
data.customer.shipping_firstname	No		Customer data
data.customer.shipping_lastname	No		Customer data
data.customer.shipping_company	No		Customer data
data.customer.shipping_address1	No		Customer data
data.customer.shipping_address2	No		Customer data
data.customer.shipping_city	No		Customer data
data.customer.shipping_postcode	No		Customer data
data.customer.shipping_state	No		Customer data
data.customer.shipping_country	No		Customer data
data.customer.shipping_phone	No		Customer data
data.customer.company	No		Customer data
data.customer.email	No		Customer data
data.customer.ip_address	No		Customer data
data.customer.national_id	No		Customer data
data.customer.iban	No		Customer data
data.customer.bic	No		Customer data

Page layout inheritance

Every template has some common HTML content which is required independently from the used Adapter (such as HTML header, Javascript, form tags etc.). To simplify the actual payment templates, these elements can be defined in a so called page layout, which gets included automatically when rendering the payment template.

Page layouts can be defined under this path:

vhosts / [ hostname ] / layouts / default / page-layout

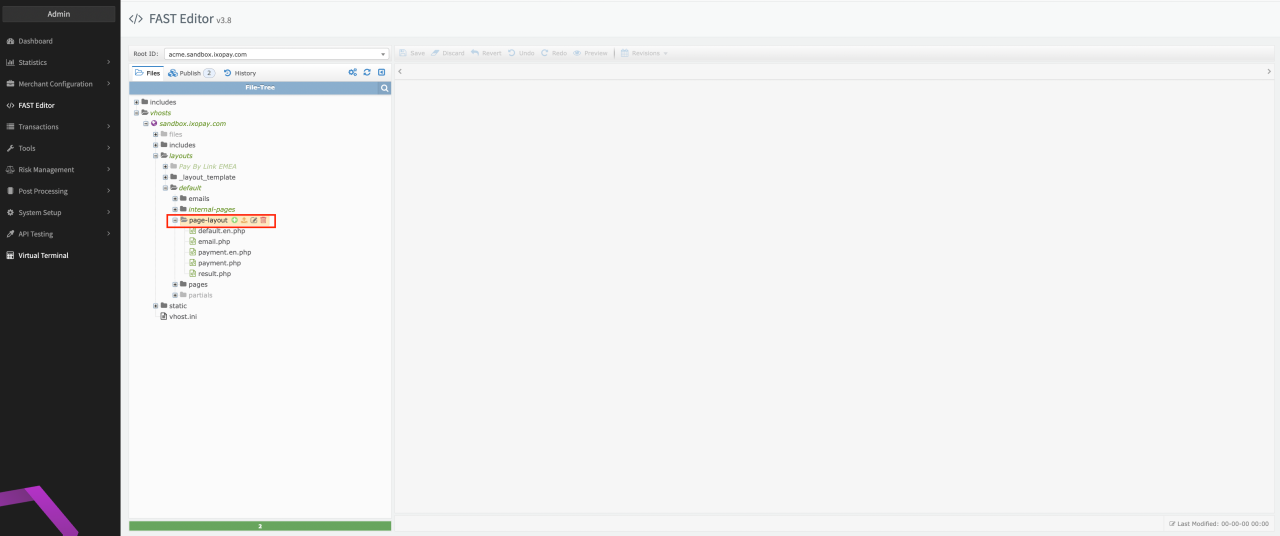

Page layout path

The page layout is resolved similar to the payment template according to the following Rules:

Priority	Template	Path within FAST Editor
1	Page layout with language template	/vhosts/gateway.ixopay.com/layouts/[LAYOUT_NAME]/page-layout/payment.[LANGUAGE].php
2	Page layout without language template	/vhosts/gateway.ixopay.com/layouts/[LAYOUT_NAME]/page-layout/payment.php (Note: No language variable used here)

tip

You can find predefined templates inside the _layout_template folder (see Page Layout Templates Path) — vhosts / [ hostname ] / layouts / _layout_template

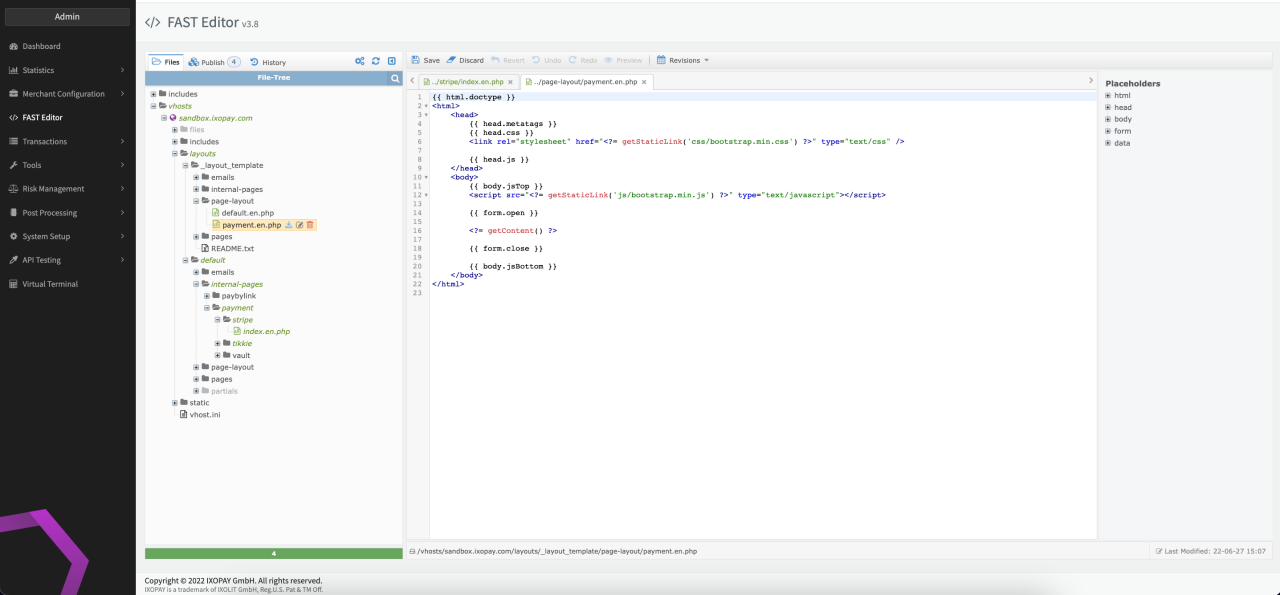

Page Layout Templates Path

Based on this logic it will first try to look for a page layout specific to the given language (e.g. payment.en.php), and if that doesn't exist, it will eventually fallback to payment.php.

A typical page layout could look like this:

{{ html.doctype }}          <!-- This is the placeholder for the doctype element -->
<html>
    <head>
        {{ head.metatags }} <!-- Metatags required by the Adapter are inserted using this placeholder --->
        {{ head.css }}      <!-- CSS Stylesheets required by the Adapter are inserted using this placeholder -->
        {{ head.js }}       <!-- Javascript files required by the Adapter are inserted using this placeholder -->
    </head>
    <body>
        {{ body.jsTop }}    <!-- Javascript snippets for the adapter -->

        {{ form.open }}     <!-- the opening form tag -->

        <?= getContent() ?> <!-- this is where the magic happens: this function call inserts the payment template content on this position -->

        {{ form.close }}    <!-- the closing form tag -->

        {{ body.jsBottom }} <!-- more Javascript snippets for the adapter -->
    </body>
</html>

Form validation & Error handling

In many cases you may want to validate additional fields and display error messages. For this, the payment templates provide a Javascript API to influence the form submission.

For validation you have to define the Ixopay.onValidation method:

<script type="text/javascript">
/**
 * @return true|false - whether to continue processing or not
 */
Ixopay.onValidation(function(data) {
  if (!data.values.first_name) {
    alert('You have to enter a first name');
    return false;
  }
  if (!data.values.last_name) {
    alert('You have to enter a last name');
    return false;
  }
  return true;
});
</script>

In case of errors, the Ixopay.onError method will be called, where it should display the error messages to the User:

<script type="text/javascript">
Ixopay.onError(function(errors) {
  for (var i = 0; i < errors.length; i++) {
    var attribute = errors[i].attribute;
    var errorCode = errors[i].key;
    var errorMessage = errors[i].message;

    alert(errorMessage);
  }
});
</script>

PCI compliant fields

Fields which require additional compliance, such as Credit Card number and CVV code, are not included in the payment form directly, but provided by the external PCI compliant vault.

To embed them in the designated spot, you have to provide a DIV element with the appropriate ID (see API Documentation: payment.js).

However since you don't have full HTML code control for these fields, you cannot apply CSS styles directly via style attribute or CSS class definitions. Instead you must use the Ixopay.PaymentFormV2.setCss method to apply those styles upon document ready event. You can also apply styles in the validation and error handler methods.

<script type="text/javascript">
// this is a shortcut event handler for document.ready provided by the awesome jQuery library
// see http://api.jquery.com
$(function() {
  // set card number style
  Ixopay.PaymentFormV2.setCss('creditcard_number', {
    'width': '200px',
    'color': '#333333',
    'font-family': 'Helvetica, Arial, sans-serif',
    'font-size': '10pt'
  });
  // set CVV style
  Ixopay.PaymentFormV2.setCss('cvv', {
    'width': '200px',
    'color': '#333333',
    'font-family': 'Helvetica, Arial, sans-serif',
    'font-size': '10pt'
  });

  //set style on validation failure
  Ixopay.onValidation(function(data) {
    if (data.custom.number_valid == false) {
      //you can even call it here
      Ixopay.PaymentFormV2.setCss('creditcard_number', { 'color': 'red' });
      return false;
    }
    if (data.custom.cvv_valid == false) {
      //...
    }
    return true;
  });
});
</script>

If needed, you can also include placeholders for PCI compliant fields:

Placeholder	Description
Ixopay.PaymentFormV2.setNumberPlaceholder('...')	Placeholder Creditcard Number
Ixopay.PaymentFormV2.setCvvPlaceholder('...')	Placeholder CVV

Event listening

Events may be listened to via following functions:

• Ixopay.PaymentFormV2.numberOn
• Ixopay.PaymentFormV2.cvvOn

Both, number and CVV fields support listening for the following events:

• input
• focus and blur
• mouseover and mouseout
• enter and esc
• tab and shift-tab

For all events, the callback function will receive a data object which will contain following:

• cardType (amex, diners, discover, jcb, maestro, mastercard, uatp, unionpay, visa, visa_electron)
• cvvLength (number)
• numberLength (number)
• validCvv (boolean)
• validNumber (boolean)

Ixopay.PaymentFormV2.numberOn('focus', function(data) {
 // do something here
});

Ixopay.PaymentFormV2.cvvOn('blur', function(data) {
 // do something here
});

Static content

You may also insert images, css and js which you have uploaded to the FAST Editor. To make such elements accessible, navigate to the static folder where you will find a css, img and js folder. Simply upload your files into the appropriate folders or create your own folder structure (see Static Section).

vhosts / [ hostname ] / static

To link your uploaded element into your template use the getStaticLink tag which will automatically create a link to the specified file.

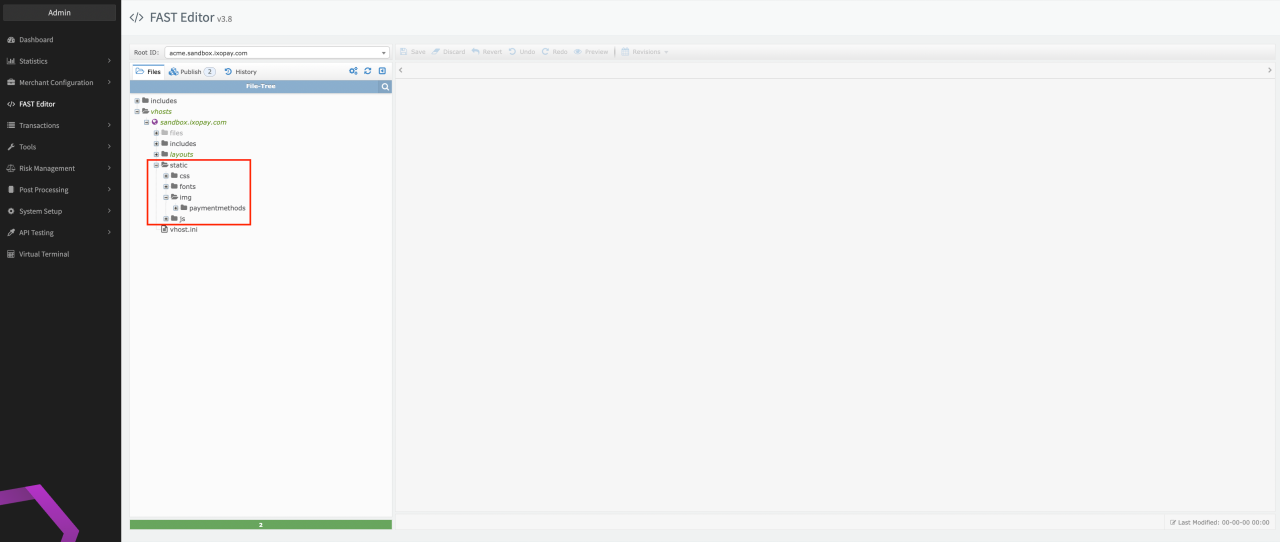

Static Section

<?= getStaticLink('path/to/file'); ?>

Example

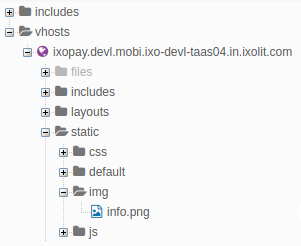

If you have uploaded a 'info.png' into the static/img/info.png you can embed it into your template as an image by doing

<img src="<?= getStaticLink('img/info.png'); ?>" />

note

The static directory itself is not part of the given URL.

FAST Editor

Publish

Once finished, you need to publish your changes or created templates, before they can be used. This needs to be done in Publish Section of the Fast Editor (see Fast Editor Publish)

1. Click on Publish Now
2. Enter a Comment to document the changes applied (see Change Log)
3. Click Publish

Now your templates will be shown as published in the Connectors Detail Overview - Payment Templates section.

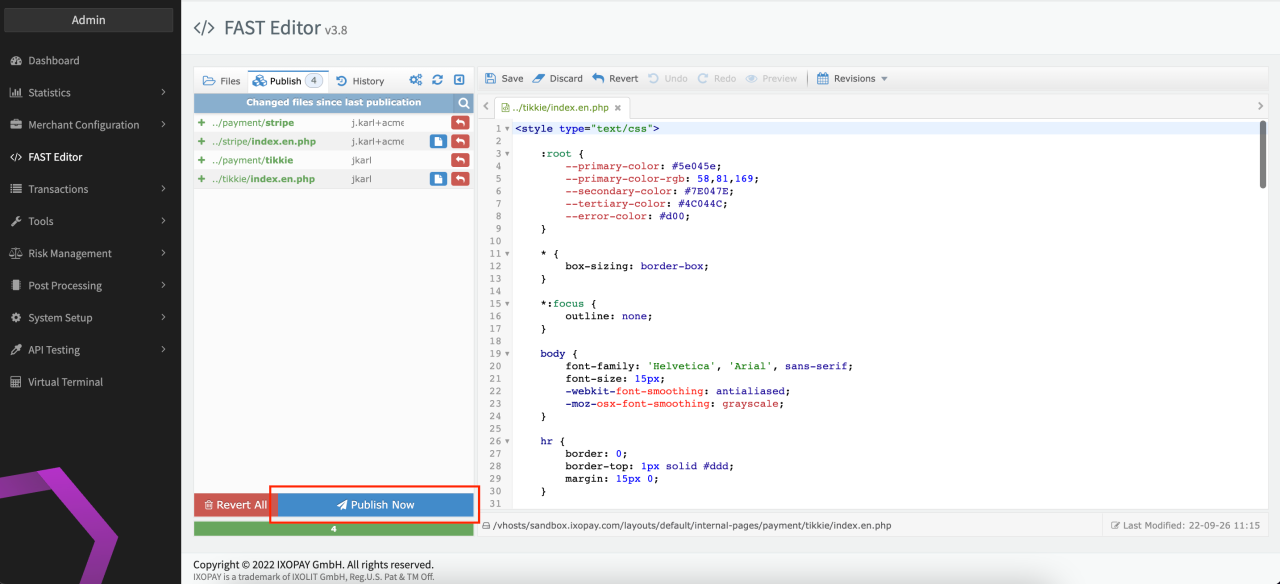

Fast Editor Publish

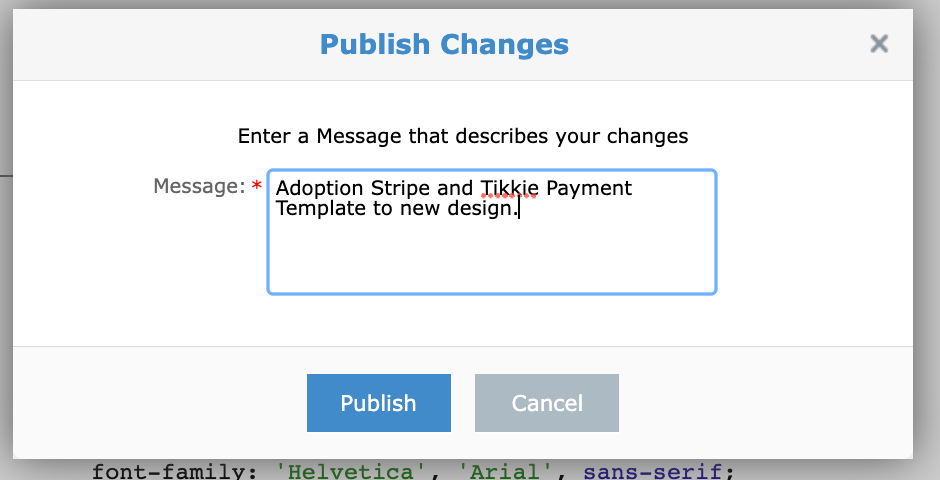

Change Log

Connectors Detail Overview - Payment Templates

note

During the publish step all changes will be published performed on templates in the structure regardless of the editor. Same is true for reverting of changes: all changes done after the the change that you want to revert will be lost.
