ApplePay & Google Pay

tip

For ApplePay/Google Pay, the IXOPAY platform also provides the binCountry in returnData object. Please note that BIN ranges might not refer to the BIN country of the underlying card. This is due to the matching being performed using the dPan. Furthermore Routing and Risk Management relying on BIN data are not supported for Apple Pay/Google Pay.

ApplePay Configuration​

In case a connector supports ApplePay token processing, ou will be presented with the configuration under the Vault Configuration tab (see Image ApplePay connector configuration). Configure the following parameters:

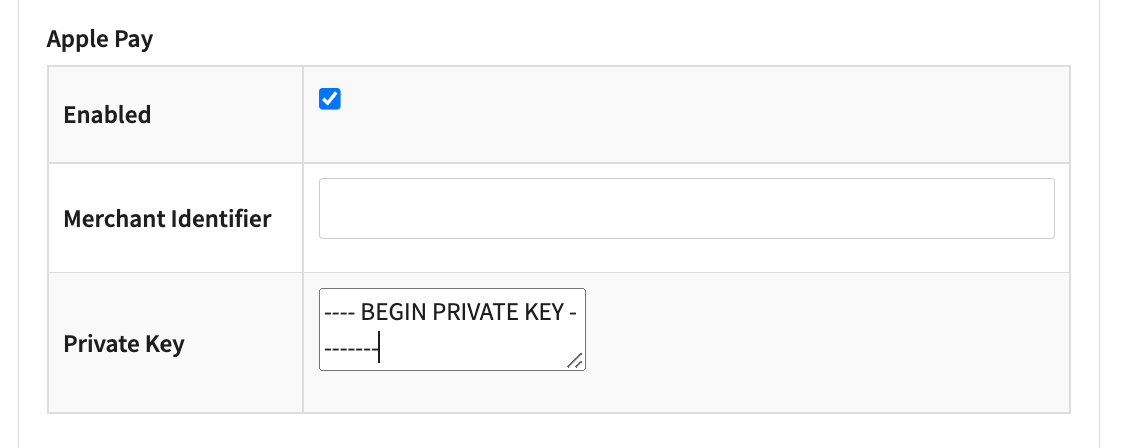

ApplePay connector configuration
ApplePay connector configuration
note

With payment.js the Apple Pay token generation is the merchant's responsibility. Refer to the API documentation for further information.

Hosted Payment Page (HPP) Configuration for ApplePay Button​

To use the ApplePay Button for the IXOPAY Hosted Payment Pages, a Connector that supports ApplePay needs to be configured as described above. Furthermore the ApplePay: Hosted Payment Page Config in the Settings section of that connector needs to be added (see Image Adding ApplePay HPP setting) and configured (see Image ApplePay HPP Configuration).

Adding ApplePay HPP setting
Adding ApplePay HPP setting
ApplePay HPP Configuration
ApplePay HPP Configuration

To activate the ApplePay Button in the IXOPAY platform hosted payment page, the following code snippets need to be added to your payment templates via the FAST Editor:

  • The container the button will be displayed in

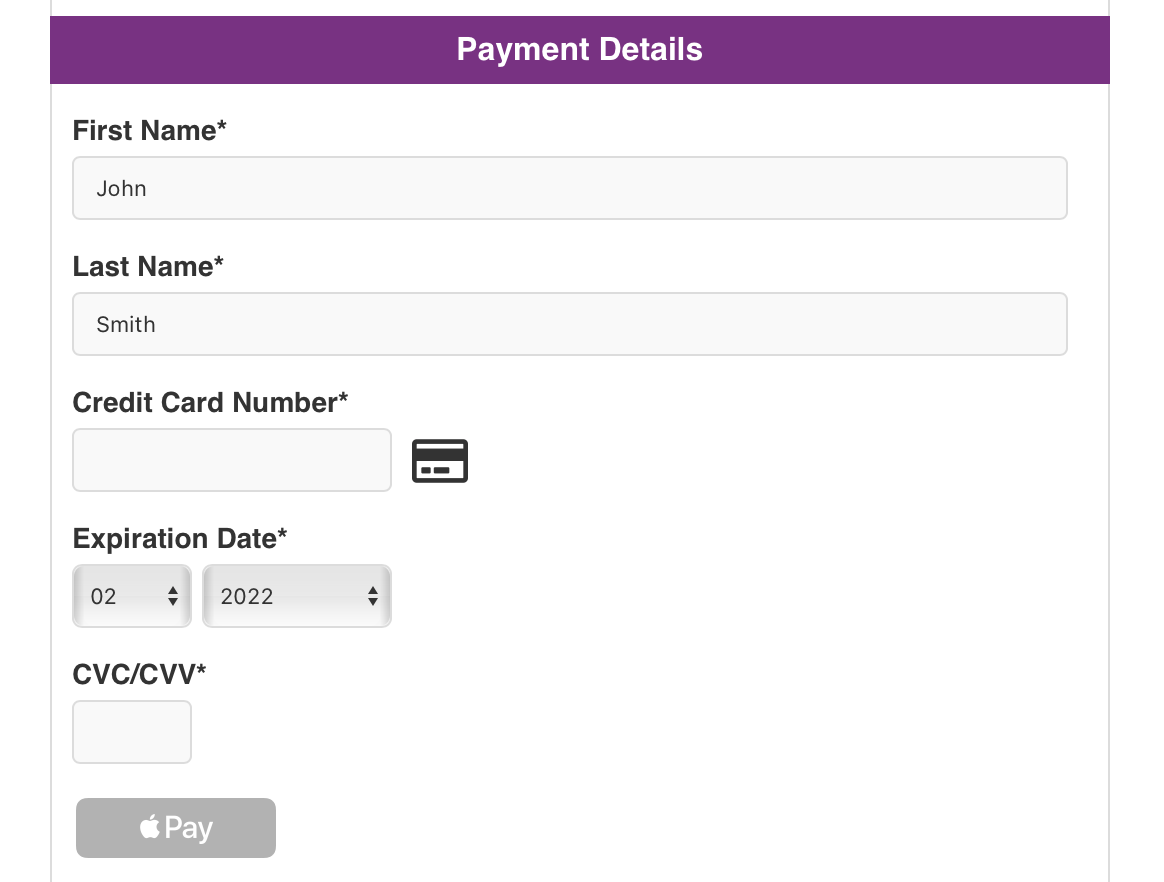

Example HPP with ApplePay Button
Example HPP with ApplePay Button
<!-- Apple Pay -->

<div id="apple-pay-div">
  <button id="btn-applepay" class="apple-pay-button apple-pay-button-black" style="cursor: pointer; opacity: 0.3;" type="button" disabled="disabled">&nbsp;</button>
</div>

<script>
/* The JavaScript Logic to define custom callback functions */
/* Apple Pay Logic */

/* Remove comment if ApplePay is properly configured on connector */
PaymentFormApplePay.initialize(
  "btn-applepay",
  function() {
    $("#btn-applepay").get(0).style.opacity = 1.0;
    $("#btn-applepay").attr("disabled", null);
  },
  function() {
    //Success Function
    $(".form-group-card").hide();
  },
  function() {
   //Cancelled Function
   $(".form-group-card").show();
  }
);
</script>
note

When adding new payment template and activate the Prefill template option, the required code snipped is include in the template by default. Simply uncomment the relevant code lines to use it.

info

The ApplePay Button is only visible using Safari on MacOS devices.

ApplePay for other Browsers​

To support Apple Pay for other browsers, some adjustments can be made on the HPP.

Hosted Payment Page Adjustments​

<!-- Replace the ApplePay button code in the HPP with following snippet -->
<div id="apple-pay-div">
    <apple-pay-button id="apple-pay-button"
        buttonstyle="black"
        type="buy"
        locale="en">
    </apple-pay-button>
    <script src="https://applepay.cdn-apple.com/jsapi/v1.3.2/apple-pay-sdk.js" nonce="{{ head.nonce }}"></script>
</div>

<!-- The style of the button can be changed as described here: https://developer.apple.com/documentation/applepayontheweb/displaying-apple-pay-buttons-using-javascript -->

<!-- Replace the id in the script part of the HPP template -->
PaymentFormApplePay.initialize(
             "apple-pay-button",
              ...

<!-- If the HPP is loaded in an iframe, the ApplePay SDK needs to be additionally included on the site containing the iframe -->
<head>
    <script crossorigin
        src="https://applepay.cdn-apple.com/jsapi/v1.3.2/apple-pay-sdk.js" integrity="sha384-DZRWMZLyVXr+7shJfal8pIG2v4KisLoSWFjZQMUv0+GWaCwoa82qeHsWrbBIUDPU" crossorigin="anonymous">
    </script>
</head>

GooglePay Configuration​

In case a connector supports GooglePay Token Processing, you will be presented with the following configuration under the Vault Configuration tab (see Image GooglePay connector configuration). Configure the following parameters:

  • Select Enabled to enable GooglePay Token Processing
  • Fill in the mandatory Merchant Identifier - GooglePay Gateway Merchant Identifier provided by Google (refer to https://developers.google.com/pay/api/web/guides/setup#registration) for Production usage - in order to perform Google registration test cases you can use any string to configure connectors in the IXOPAY platform Sandbox environments, we recommend to use merchant’s GUID.
  • Fill in the Name of test key in vault - Test key provided by IXOPAY for the IXOPAY platform Sandbox environment
  • Fill in the Name of production key in vault - Production key provided by IXOPAY for the IXOPAY platform production environment
  • Select Test Environment Enabled - transactions will be sent to Google's test environment
GooglePay connector configuration
GooglePay connector configuration
note

Test Environment Enabled has to be checked explicitly and is not linked to the general connector configuration “Test Mode”.

note

With payment.js the GooglePay token generation is the merchants responsibility, refer to the API documentation for further information.

Hosted Payment Page (HPP) Configuration for GooglePay Button​

To use the GooglePay Button for the IXOPAY hosted payment pages, a connector that supports GooglePay needs to be configured as described above. Furthermore the googlepay:hpp-config in the Settings section of that connector needs to be added (see Image Adding GooglePay HPP setting) and configured (see Image GooglePay HPP Configuration).

Adding GooglePay HPP setting
Adding GooglePay HPP setting

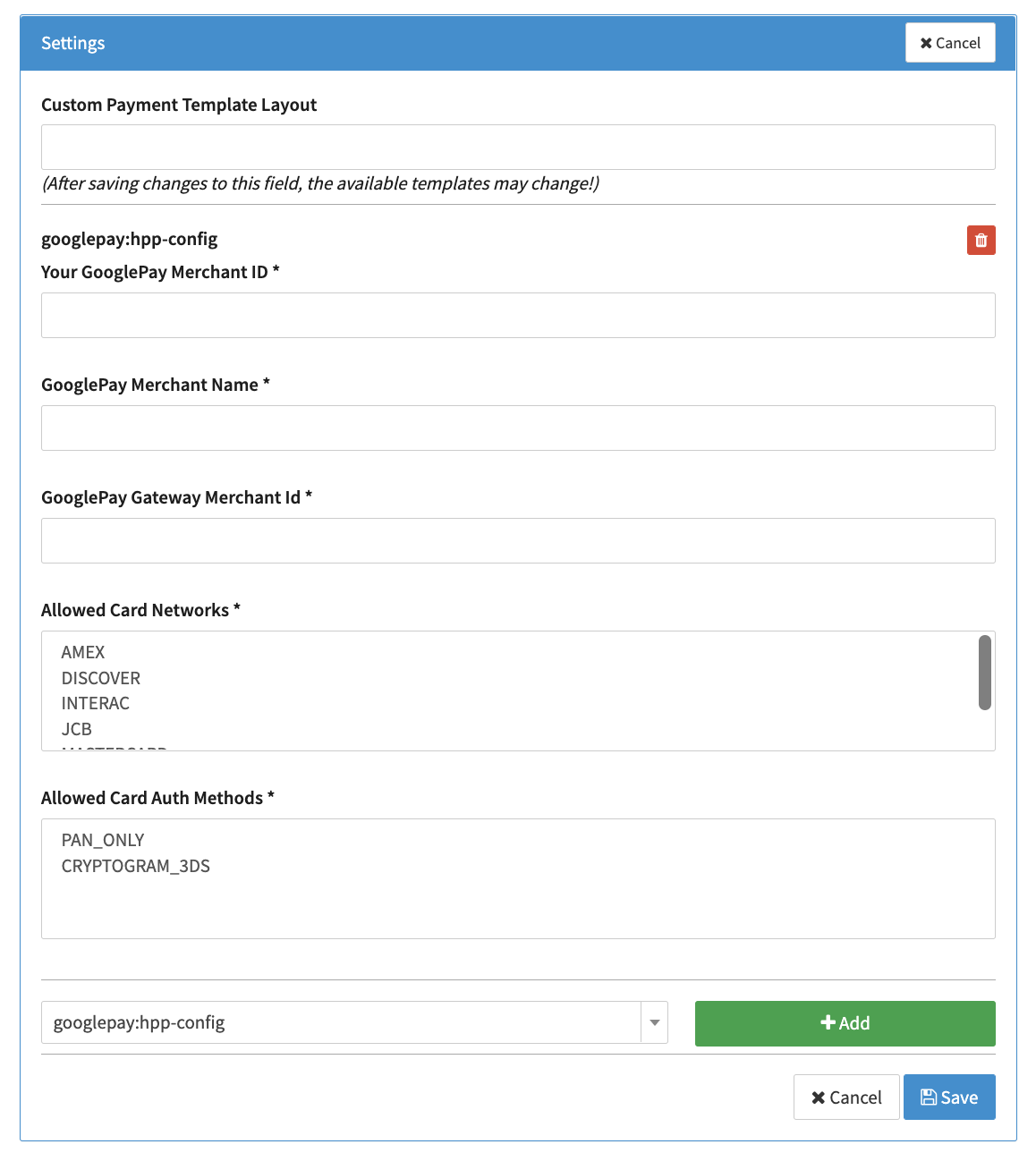

GooglePay HPP Configuration
GooglePay HPP Configuration

To activate the GooglePay button in the IXOPAY HPP the following code snippets need to be added to your payment templates via the FAST Editor.

  • The container the button will be displayed in

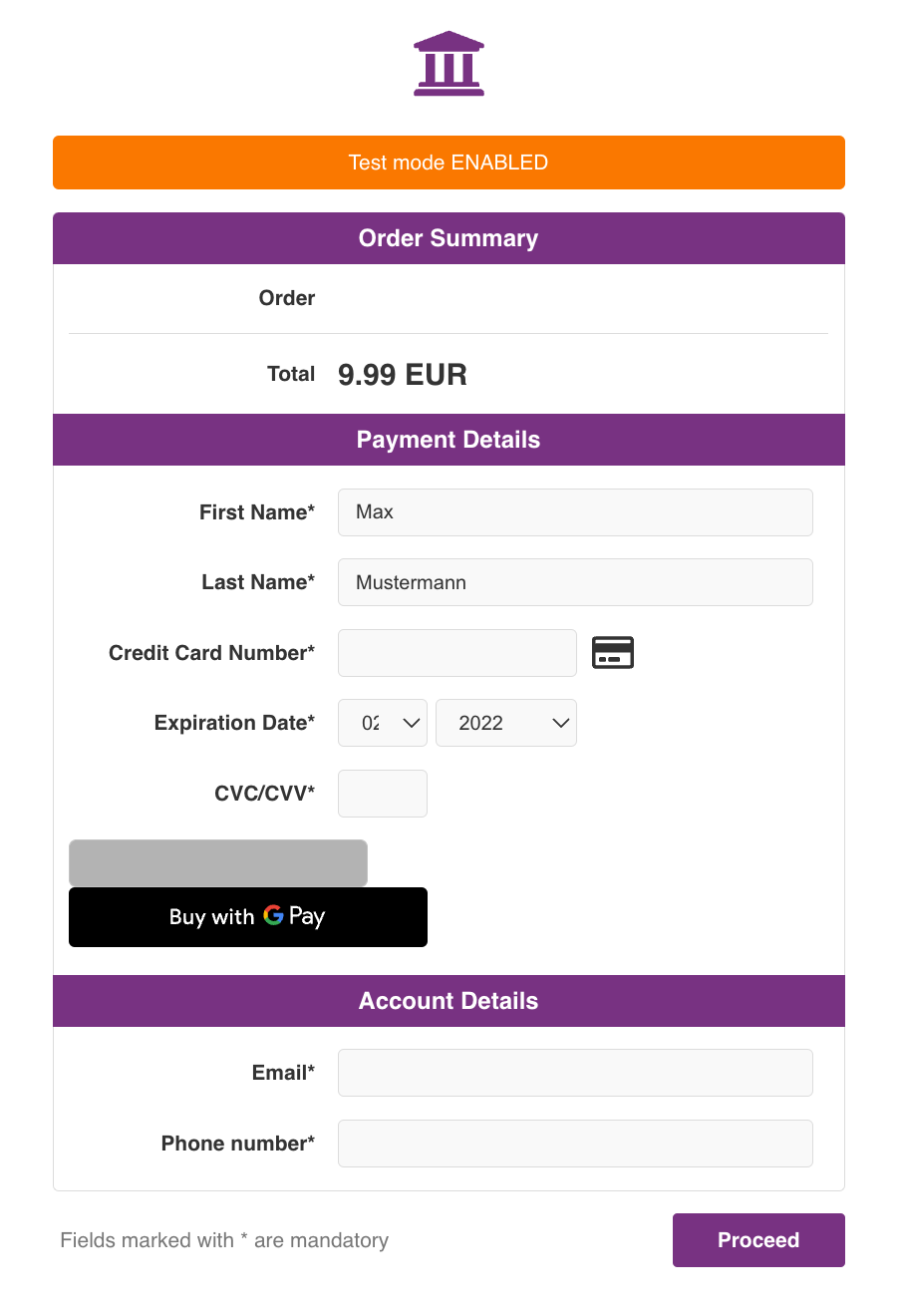

Example HPP with GooglePay Button
Example HPP with GooglePay Button
<!-- Google Pay -->

<div class="form-group">
  <div id="google-pay-div">
    <script src="https://pay.google.com/gp/p/js/pay.js"></script>
  </div>
</div>

<script>
/* The JavaScript Logic to define custom callback functions */
/* Google Pay Logic */

/* Remove comment if GooglePay is properly configured on connector */

PaymentFormGooglePay.initialize(
  "google-pay-div",
  function() {
    $('#google-pay-div').get(0).style.opacity = 1.0;
    $('#google-pay-div').attr('disabled', null);
  },
  function(err) {
    console.log(err);
  },
  function() {
    //Success Function
    $('.form-group-card').hide();
  },
  function() {
    //Cancelled Function
    $('.form-group-card').show();
  }
);
</script>
note

When adding new payment template and activate the Prefill template option, the required code snipped is include in the template by default. Simply uncomment the relevant code lines to use it.

Passthrough Tokens​

The IXOPAY platform is able to either decrypt GooglePay and ApplePay tokens and pass the decrypted data or to pass the tokens through to a provider for decryption.

To activate the passthrough to the provider, enable the Enable Passthrough Tokens check box in the Connector Vault Configuration (See Passthrough).

Passthrough
Passthrough

ApplePay Merchant Setup​

Create a merchant identifier​

A merchant identifier uniquely identifies you to ApplePay as a merchant who is able to accept payments. A merchant identifier never expires, and you can use the same one for multiple apps. In order to use ApplePay we recommend creating a new Merchant Identifier

  • In Certificates, Identifiers & Profiles, click Identifiers in the sidebar, then click the select the + Button on the top left (see ApplePay Developer - Certificates, Identifiers & Profiles)
  • Select Merchant IDs, then select Continue (see ApplePay Developer - Identifiers)
  • Enter the Merchant description and Identifier name, then select Save — It is advised to choose the identifier as reverse of the domain where you will provide your ApplePay button (see ApplePay Developer - Merchant ID configuration)
  • Review the settings and select Register

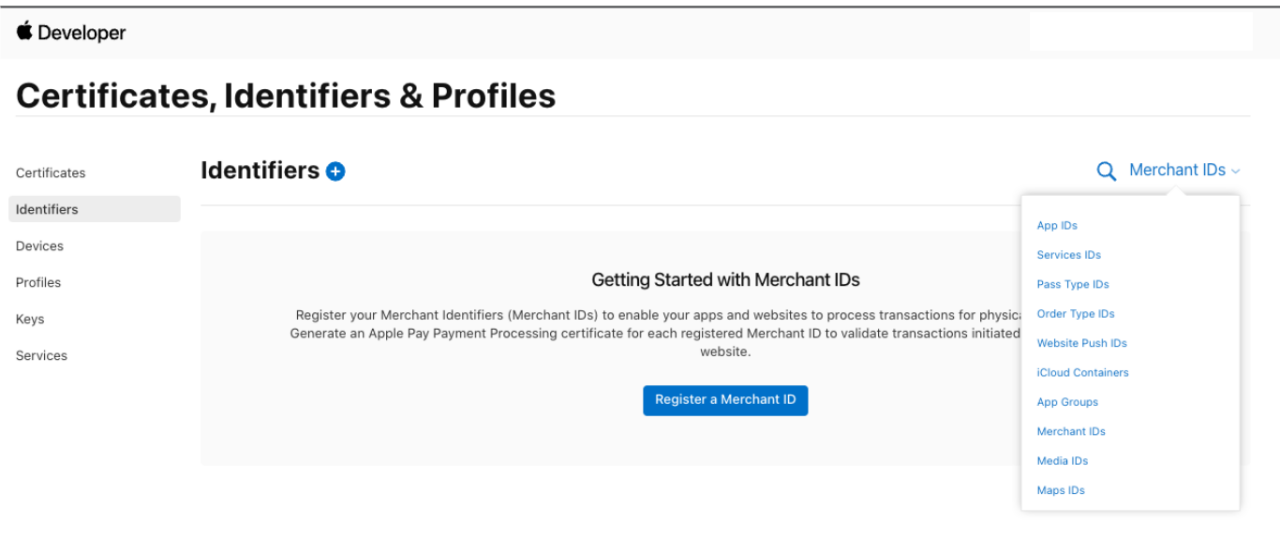

ApplePay Developer - Certificates, Identifiers & Profiles
ApplePay Developer - Certificates, Identifiers & Profiles

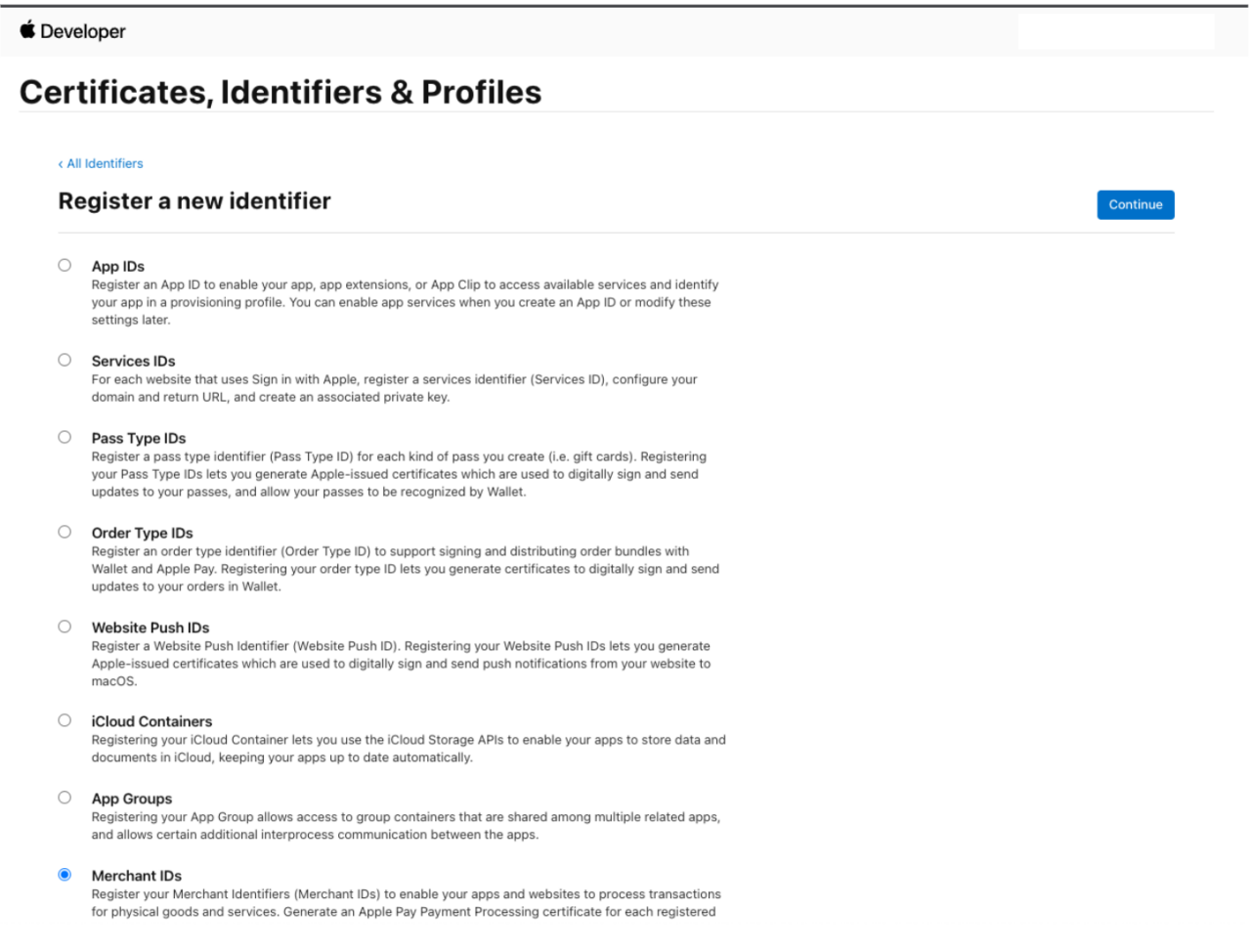

ApplePay Developer - Identifiers
ApplePay Developer - Identifiers
ApplePay Developer - Merchant ID configuration
ApplePay Developer - Merchant ID configuration

Create a payment processing certificate​

A payment processing certificate is associated with your merchant identifier and used to encrypt payment information.

  • In Certificates, Identifiers & Profiles, click Identifiers in the sidebar, select Merchant IDs using the filter on the top right. (see ApplePay Developer - Certificates, Identifiers & Profiles II)
  • Select your created Merchant ID
  • Under Apple Pay Payment Processing Certificate, select Create Certificate (see ApplePay Developer - Merchant ID configuration II)

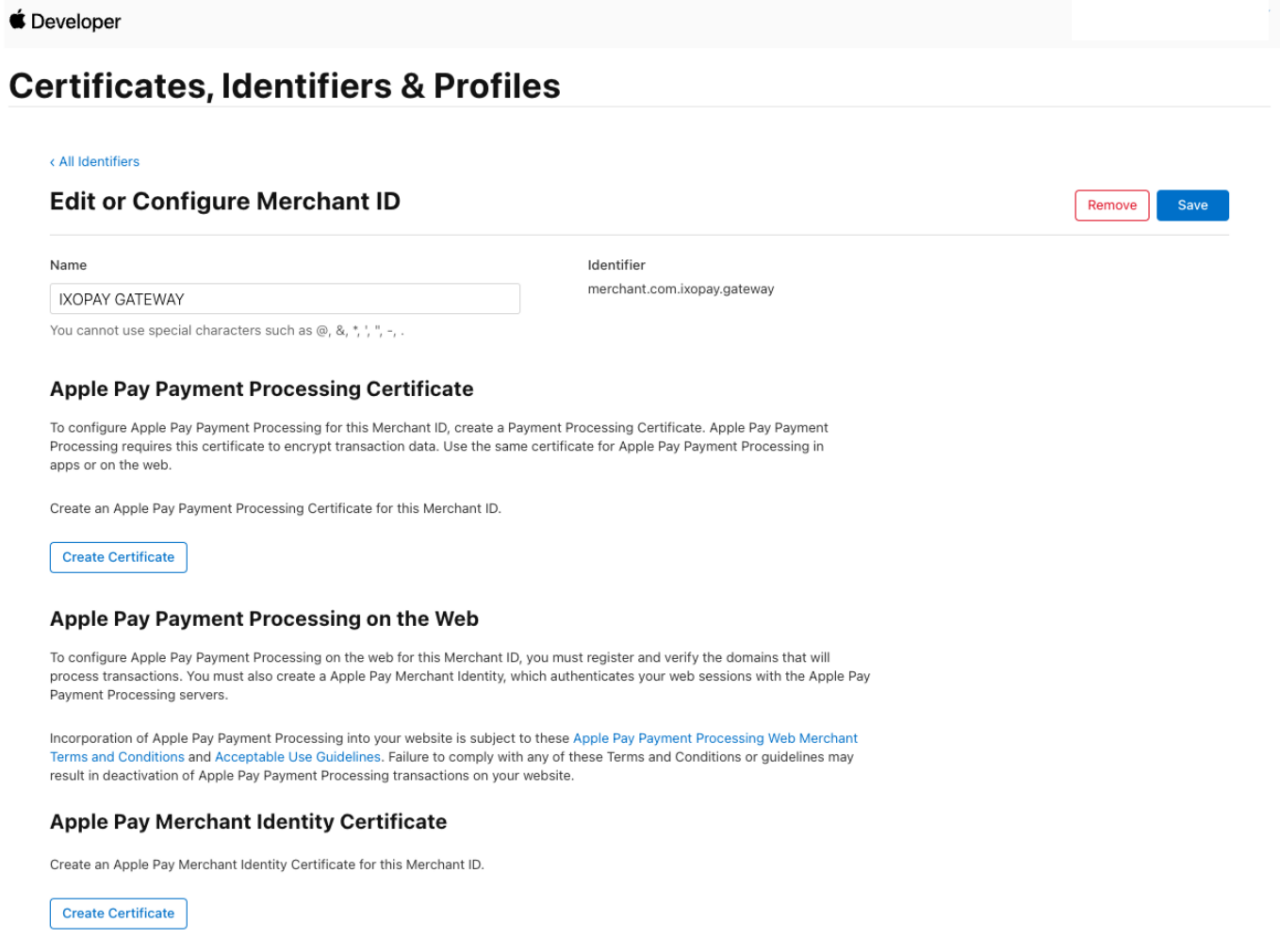

ApplePay Developer - Certificates, Identifiers & Profiles II
ApplePay Developer - Certificates, Identifiers & Profiles II
see ApplePay Developer - Merchant ID configuration II
see ApplePay Developer - Merchant ID configuration II
info

The payment processing certificate expires every 25 months. If the certificate is revoked, you have to recreate it.

note

If a banner appears at the top of the page saying that you need to accept an agreement, select the Review Agreement button and follow the instructions before continuing.

  • Create a certificate signing request on your Mac, then select Continue
    • Via Apple Certificate Wizard: Follow the official Apple Pay instructions here https://developer.apple.com/help/account/create-certificates/create-a-certificate-signing-request. A file with a .certSigningRequest file extension is needed.
    • Via CLI: less complicated way as you get the private key directly and don’t need to extract it. Replace the values for YOURCOMPANYNAME and YOURCOMPANYCOUNTRYALPHA2 (see CLI - Command I & II). Use the certificateSigningRequest.csr file for next step.
  • Select Choose File and select the certificate request file in the appearing dialog, then select Choose (see ApplePay Developer - Upload)
  • Select Continue then Download (see ApplePay Developer - Download), the certificate file (file with a .cer file extension) will appear in your Downloads folder.

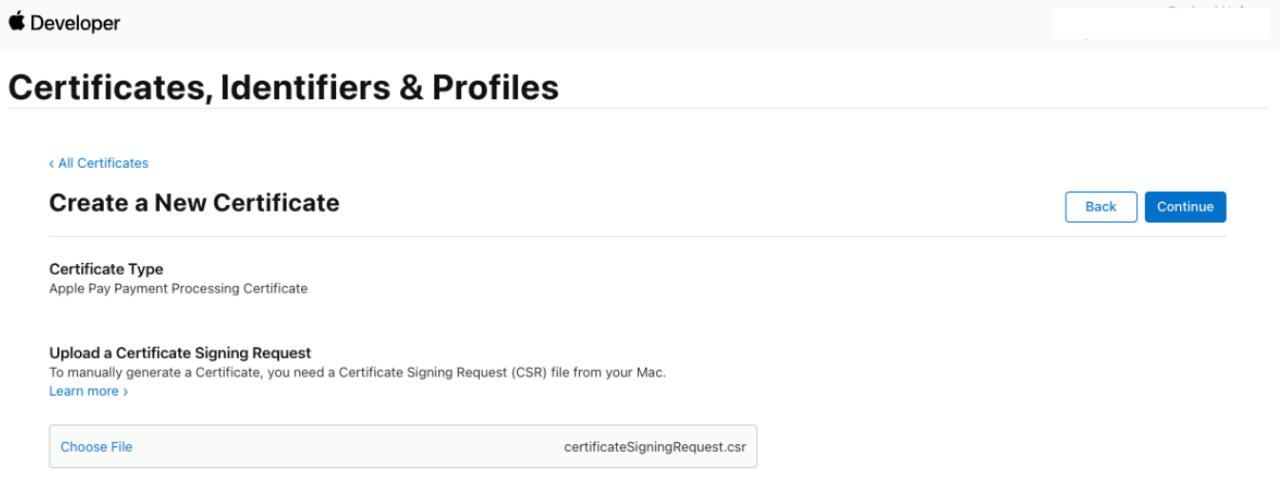

ApplePay Developer - Upload
ApplePay Developer - Upload

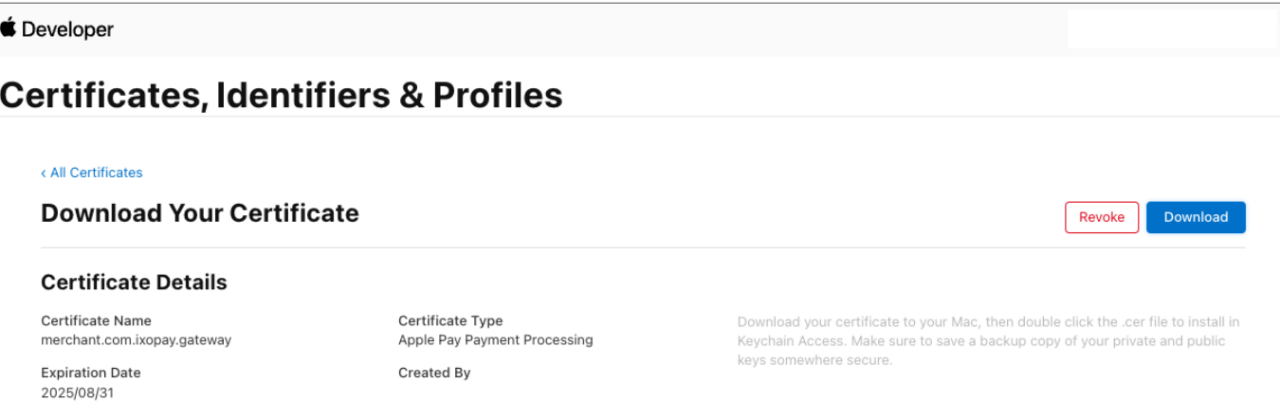

ApplePay Developer - Download
ApplePay Developer - Download
openssl ecparam -name prime256v1 -genkey -noout -out privateKey.key
openssl req -new -key privateKey.key -out certificateSigningRequest.csr \
  -subj '/O=YOURCOMPANYNAME/C=YOURCOMPANYCOUNTRYALPHA2'

Register a merchant domain​

  • In Certificates, Identifiers & Profiles, click Identifiers in the sidebar, select Merchant IDs using the filter on the top right. (see ApplePay Developer - Certificates, Identifiers & Profiles II)
  • Select your created Merchant ID
  • Under Merchant Domains, select Add Domain (see ApplePay Developer - Merchant ID configuration III)
  • Fill in the fully qualified domain name, then select Save (see ApplePay Developer - Domain configuration)
  • Select Download, store the downloaded file in the specified location, then select Verify (see ApplePay Developer - Domain Verification)
ApplePay Developer - Merchant ID configuration III
ApplePay Developer - Merchant ID configuration III

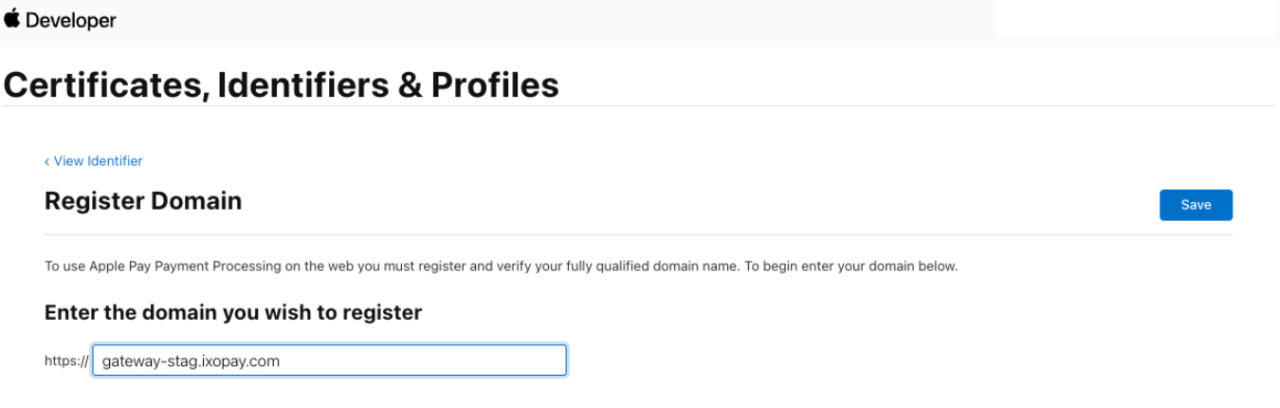

ApplePay Developer - Domain configuration
ApplePay Developer - Domain configuration

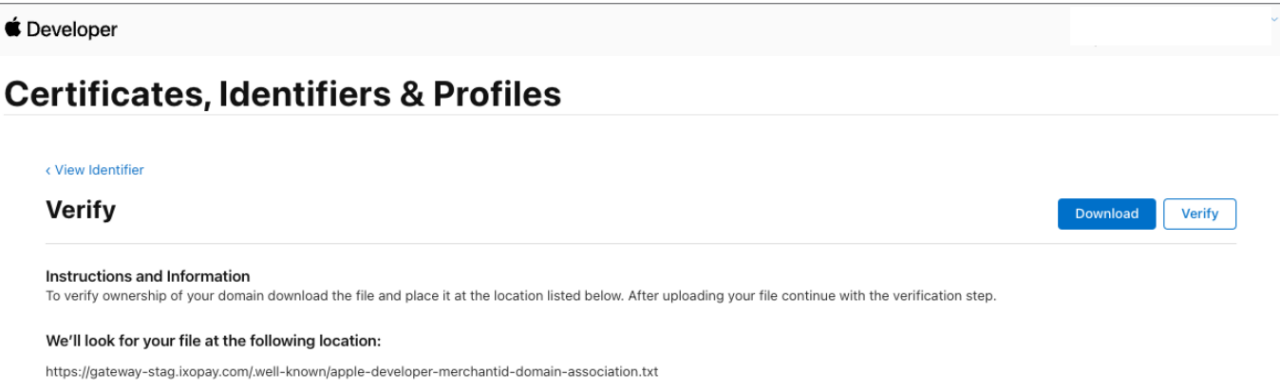

ApplePay Developer - Domain Verification
ApplePay Developer - Domain Verification
info

If you are using our Hosted Payment Pages to display the ApplePay button please provide the file to your Customer Success Manager or our Support Team in the IXOPAY Customer Experience Portal, we will place the file in the displayed location for you.
If you are displaying our Hosted Payment Page in an iframe, include https://gateway.ixopay.com/js/payment/applepay_hosted.js in the page containing the iframe (include it from our sandbox domain or your own IXOPAY subdomain if applicable). You will also need to verify the domain of the container site with Apple. Follow the above steps, but host the resulting .txt file on your own server.

Even though we recommend using native ApplePay buttons in apps, it is possible to display the Hosted Payment Page in a WebView. In this case, add your merchant id to your app profile, as domain verification does not apply to apps.

Create a merchant identity certificate​

  • In Certificates, Identifiers & Profiles, click Identifiers in the sidebar, select Merchant IDs using the filter on the top right. (see ApplePay Developer - Certificates, Identifiers & Profiles II)
  • Select your created Merchant ID
  • Under Apple Pay Merchant Identity Certificate, select Create Certificate (see ApplePay Developer - Merchant Identity Certificate)
  • Create a certificate signing request on your Mac, then select Continue.
    • Via Apple Certificate Wizard: Follow the official Apple Pay instructions here https://developer.apple.com/help/account/create-certificates/create-a-certificate-signing-reques. A file with a .certSigningRequest file extension is needed
    • Via CLI: less complicated way as you get the private key directly and don’t need to extract it. Replace the values for YOURCOMPANYNAME and YOURCOMPANYCOUNTRYALPHA2 (see CLI - Command III & IV). Use the certificateSigningRequest.csr file for next step.
  • Select Choose File and select the certificate request file in the appearing dialog, then select Choose (see ApplePay Developer - Upload II)
  • Select Continue then Download, the certificate file (file with a .cer file extension) will appear in your Downloads folder.
  • Convert the merchant_id.cer to a .pem file (see convert certificate format)

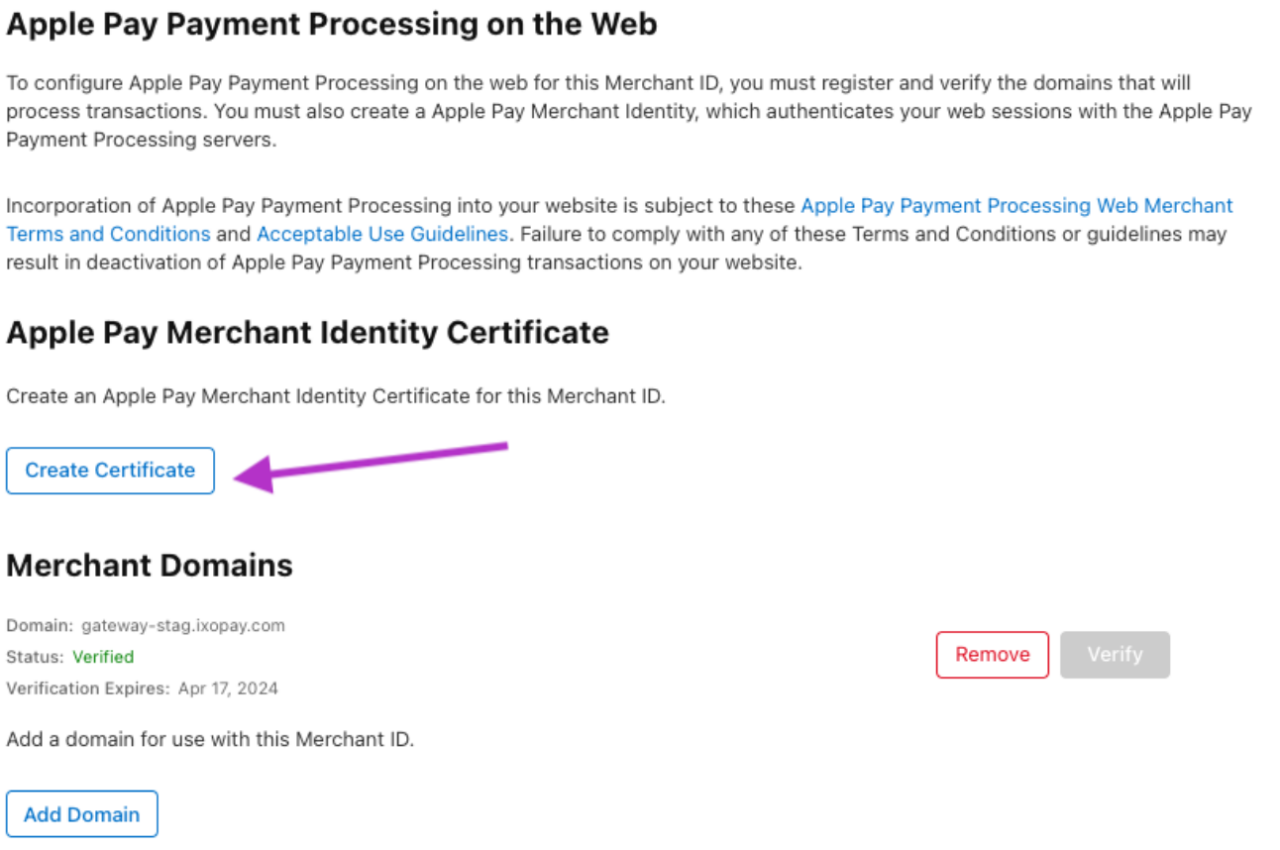

ApplePay Developer - Merchant Identity Certificate
ApplePay Developer - Merchant Identity Certificate
ApplePay Developer - Upload II
ApplePay Developer - Upload II
openssl genrsa -out merchantPrivateKey.key 2048
openssl req -new -key merchantPrivateKey.key -out merchantCertificateSigningRequest.csr \
  -subj '/O=YOURCOMPANYNAME/C=YOURCOMPANYCOUNTRYALPHA2'
Convert certificate format
openssl x509 -inform der -in merchant_id.cer -out merchant_id.pem
tip

Note that the creation of this privateKey and CSR is different to the “payment processing certificate”.

Create a Apple Sandbox Test Account​

  1. Create an ApplePay Sandbox Tester (apple ID only for testing) (see Sandbox Account)
  2. Add the AppleID to one of your Apple Devices
  3. Add Apple Test Cards to the Wallet of this Apple ID. You can find the Test Cards here: https://developer.apple.com/apple-pay/sandbox-testing/

Test your Apple Pay integration with this test account and check your Token has the correct format.

Example ApplePay “transactionToken” for the transaction payload (using payment.js - no HPP):

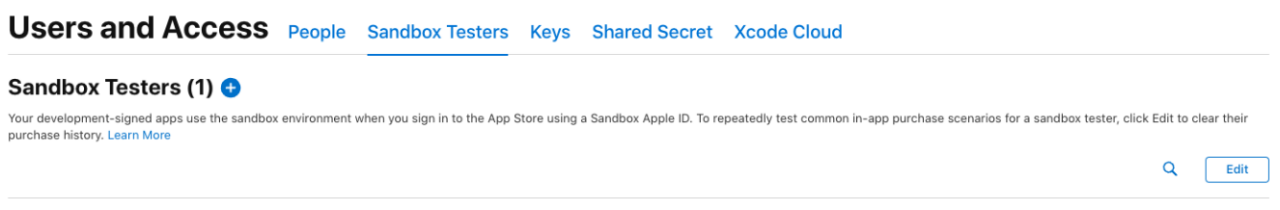

Sandbox Account
Sandbox Account
Short form
{
  // ...
  "transactionToken": "applepay:{YOURTOKEN}"
  // ...
}
Long form
{
  // ...
	"transactionToken": "applepay:{\"token\":{\"paymentData\":{\"data\":\"mYd5Oo2cefxSqQo6Z4Nj7OFLh50HkW9mB7esTf6oZo4Gt1pzLHmGXSrm4rd4OGUSetDlBnieesdfadfJ96RUWtymK3cyxqSRufMelUV6g746dtus5SeqFBMVN957boP0s6CyzqSlZRqpwUtsW65NmlvGi2XGgIPLqmEY4P4tFRsdxqv\/RfgGrt\/DcfcvNRO12asdfasdfa231328zU4zxzkSK5wF2cTcCG1s4Rs1XzPfeKlrZpKSf94zKmJ7ztoCpZHxgi47rEPxINvI0SPuK+evusrfy0HMR4qpY3faG\/+fkpBBDLP3No+EoFTRGwt1Yt9n7Cu0fEs3X\/k\/+h7YH4KZGmp9pTwQD+V2BC6MaFDrRlfaOymJT9qJKD6uJ1p1l882LJtfWDD9wmLvZjORdyA==\",\"signature\":\"MIAGCSqGSIb3DQEHAqCAMIACAQExDTALBglghkgBZQMEAgEwgAYJKoZIhvcNAQcBAACggDCCA+MwggOIoAMCAQICCEwwQUlRnVQ2MAoGCCqGSM49BAMCMHoxLjAsBgNVBAMMJUFwcGxlIEFwcGxpY2F0aW9uIEludGVncmF0aW9uIENBIC0gRzMxJjAkBgNVBAsMHUFwcGxlIENlcnRpZmljYXRpb24gQXV0aG9yaXR5MRMwEQYDVQQKDApBcHBsZSBJbmMuMQswCQYDVQQGEwJVUzAeFw0xOTA1MTgASDFGBSDFSDFASTAjBgNVBAMMHGVjYy1zbXAtYnJva2VyLXNpZ25fVUM0LVBST0QxFDASBgNVBAsMC2lPUyBTeXN0ZW1zMRMwEQYDVQQKDApBcHBsZSBJbmMuMQswCQYDVQQGEwJVUzBZMBMGByqGSM49AgEGCCqGSM49AwEHA0IABMIVd+3r1seyIY9o3XCQoSGNx7C9bywoPYRgldlK9KVBG4NCDtgR80B+gzMfHFTD9+syINa61dTv9JKJiT58DxOjggIRMIICDTAMBgNVHRMBAf8EAjAAMB8GA1UdIwQYMBaAFCPyScRPk+TvJ+bE9ihsP6K7\/S5LMEUGCCsGAQUFBwEBBDkwNzA1BggrBgEFBQcwAYYpaHR0cDovL29jc3AuYXBwbGUuY29tL29jc3AwNC1hcHBsZWFpY2EzMDIwggEdBgNVHSAEggEUMIIBEDCCAQwGCSqGSIb3Y2QFATCB\/jCBwwYIKwYBBQUHAgIwgbYMgbNSZWxpYW5jZSBvbiB0aGlzIGNlcnRpZmljYXRlIGJ5IGFueSBwYXJ0eSBhc3N1bWVzIGFjY2VwdGFuY2Ugb2YgdGhlIHRoZW4gYXBwbGljYWJsZSBzdGFuZGFyZCB0ZXJtcyBhbmQgY29uZGl0aW9ucyBvZiB1c2UsIGNlcnRpZmljYXRlIHBvbGljeSBhbmQgY2VydGlmaWNhdGlvbiBwcmFjdGljZSBzdGF0ZW1lbnRzLjA2BggrBgEFBQcCARYqaHR0cDovL3d3dy5hcHBsZS5jb20vY2VydGlmaWNhdGVhdXRob3JpdHkvMDQGA1UdHwQtMCswKaAnoCWGI2h0dHA6Ly9jcmwuYXBwbGUuY29tL2FwcGxlYWljYTMuY3JsMB0GA1UdDgQWBBSUV9tv1XSBhomJdi9+V4UH55tYJDAOBgNVHQ8BAf8EBAMCB4AwDwYJKoZIhvdjZAYdBAIFADAKBggqhkjOPQQDAgNJADBGAiEAvglXH+ceHnNbVeWvrLTHL+tEXzAYUiLHJRACth69b1UCIQDRizUKXdbdbrF0YDWxHrLOh8+j5q9svYOAiQ3ILN2qYzCCAu4wggJ1oAMCAQICCEltL786mNqXMAoGCCqGSM49BAMCMGcxGzAZBgNVBAMMEkFwcGxlIFJvb3QgQ0EgLSBHMzEmMCQGA1UECwwdQXBwbGUgQ2VydGlmaWNhdGlvbiBBdXRob3JpdHkxEzARBgNVBAoMCkFwcGxlIEluYy4xCzAJBgNVBAYTAlVTMB4XDTE0MDUwNjIzNDYzMFoXDTI5MDUwNjIzNDYzMFowejEuMCwGA1UEAwwlQXBwbGUgQXBwbGljYXRpb24gSW50ZWdyYXRpb24gQ0EgLSBHMzEmMCQGA1UECwwdQXBwbGUgQ2VydGlmaWNhdGlvbiBBdXRob3JpdHkxEzARBgNVBAoMCkFwcGxlIEluYy4xCzAJBgNVBAYTAlVTMFkwEwYHKoZIzj0CAQYIKoZIzj0DAQcDQgAE8BcRhBnXZIXVGl4lgQd26ICi795123123asdfasfaDFgASdfYIKwYBBQUHMAGGKmh0dHA6Ly9vY3NwLmFwcGxlLmNvbS9vY3NwMDQtYXBwbGVyb290Y2FnMzAdBgNVHQ4EFgQUI\/JJxE+T5O8n5sT2KGw\/orv9LkswDwYDVR0TAQH\/BAUwAwEB\/zAfBgNVHSMEGDAWgBS7sN6hWDOImqSKmd6+veuv2sskqzA3BgNVHR8EMDAuMCygKqAohiZodHRwOi8vY3JsLmFwcGxlLmNvbS9hcHBsZXJvb3RjYWczLmNybDAOBgNVHQ8BAf8EBAMCAQYwEAYKKoZIhvdjZAYCDgQCBQAwCgYIKoZIzj0EAwIDZwAwZAIwOs9yg1EWmbGG+zXDVspiv\/QX7dkPdU2ijr7xnIFeQreJ+Jj3m1mfmNVBDY+d6cL+AjAyLdVEIbCjBXdsXfM4O5Bn\/Rd8LCFtlk\/GcmmCEm9U+Hp9G5nLmwmJIWEGmQ8Jkh0AADGCAYkwggGFAgEBMIGGMHoxLjAsBgNVBAMMJUFwcGxlIEFwcGxpY2F0aW9uIEludGVncmF0aW9uIENBIC0gRzMxJjAkBgNVBAsMHUFwcGxlIENlcnRpZmljYXRpb24gQXV0aG9yaXR5MRMwEQYDVQQKDApBcHBsZSBJbmMuMQswCQYDVQQGEwJVUwIITDBBSVGdVDYwCwYJYIZIAWUDBAIBoIGTMBgGCSqGSIb3DQEJAzELBgkqhkiG9w0BBwEwHAYJKoZIhvcNAQkFMQ8XDTIzMDgwMzEyMzIzMlowKAYJKoZIhvcNAQk0MRswGTALBglghkgBZQMEAgGhCgYIKoZIzj0EAwIwLwYJKoZIhvcNAQkEMSIEIJHjEUt3D3kVbh2c4oGoYvsadfsadfDASDFADF8cxAzsMAoGCCqGSM49BAMCBEgwRgIhAJ1a13ITgNDXpg3JciNzbLvqXbxYfeph9yR4RLXJRuiSAiEAhq9M7DYVeYZw+hKUct5dAS7PHy+pa9Y9gxBAq+10D1sAAAAAAAA=\",\"header\":{\"publicKeyHash\":\"Nl+banL5XgejSWXhPNuncDYkTOAEZmGYZvUfbb4bOko=\",\"ephemeralPublicKey\":\"MFkwEwYHKoZIzj0CAQYIKoZIzj0DAQcDQgAEvqH9aA84DGT2nk59fSDHhcYYlFEETc5Ep1KwcYPG6h97jnLnuQhoZS5349mxJBteWDKJocAcQbP\/3\/Oqa0AThw==\",\"transactionId\":\"eb3b94ed7f650d8123d81ab57ecb2f2123448f3cef48e449e3aeb90d8240a24d\"},\"version\":\"EC_v1\"},\"paymentMethod\":{\"displayName\":\"Visa 0326\",\"network\":\"Visa\",\"type\":\"debit\"},\"transactionIdentifier\":\"eb3b94ed7f650d8123d81ab57ecb2f2123448f3cef48e449e3aeb90d8240a24d\"}}"
  // ...
}
