Network Merchants Inc.(NMI)

Creditcard

Depending on the chosen Interface Type the following parameters for the Connector need to be configured (see Connector Config - NMI):

1. Fill in the mandatory Usename — Merchant Account Username
2. Fill in the mandatory Password — Merchant Account Password
3. Fill in the mandatory API Secret — Generated and provided by NMI
4. Fill in the Extra Data: threatMetrixOrgId — Threat matrix organisation ID
5. Fill in the Extra Data: threatMetrixClientId — Threat matrix client ID
6. Fill in the Extra Data: paymentProcessorAdapter — Payment processor behind NMI to be used for postback handling.
7. Fill in the Extra Data: paymentProcessorUsername — Username for payment processor used through NMI
8. Fill in the Extra Data: paymentProcessorPassword — Password for payment processor used through NMI
9. Fill in the Extra Data: paymentProcessorApiSecret — API secret for payment processor used through NMI
10. Fill in the Extra Data: paymentProcessorExtradata — Configuration ExtraData for payment processor behind NMI

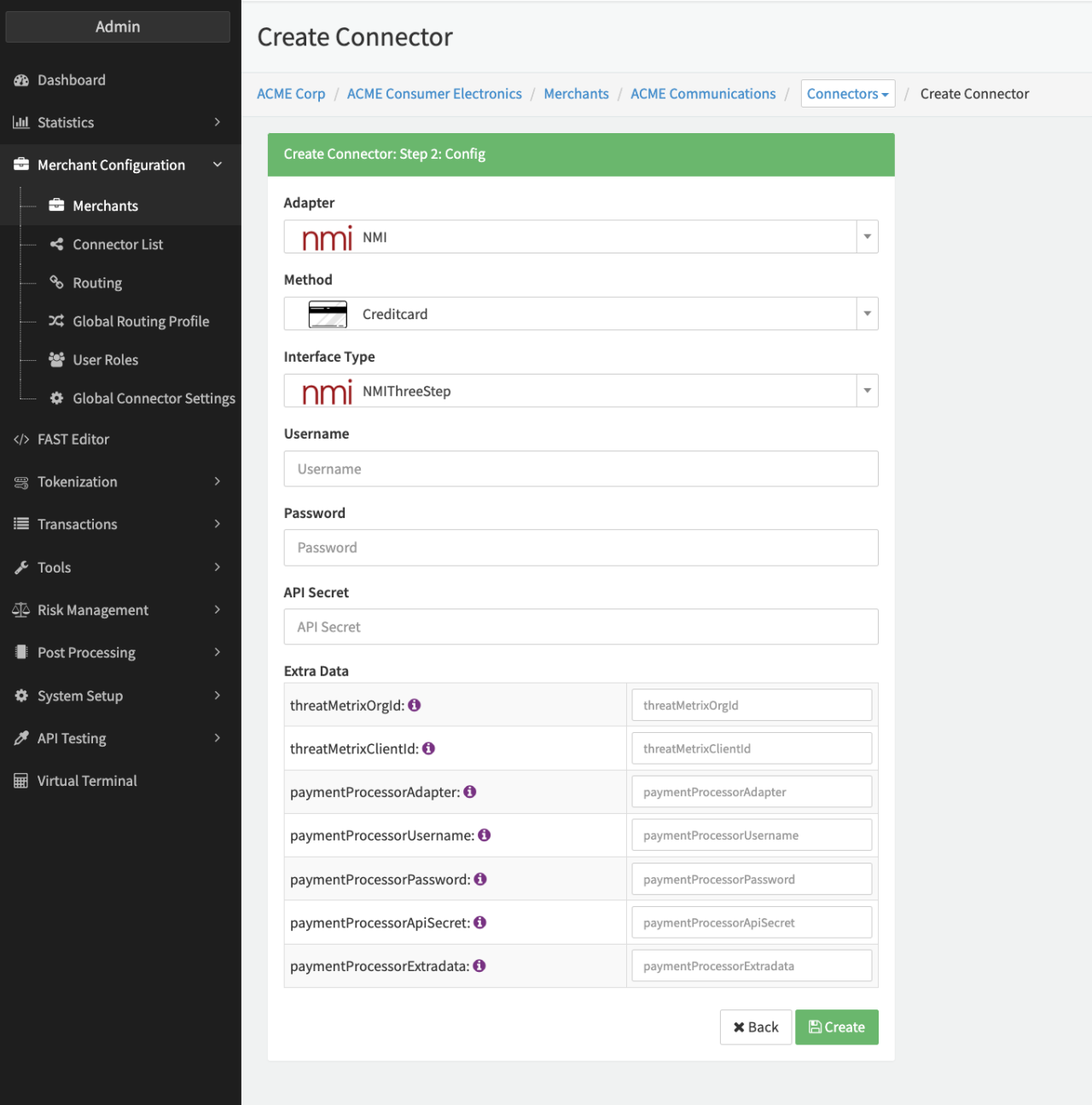

Connector Config - NMI

Keep in mind that for PCI compliant Adapters you need to connect with the PCI environment and the PCI Vault Configuration is shown.

PCI Creditcard

The following parameters for the Connector need to be configured (see PCI Vault Configuration - Creditcard NMI):

1. Fill in the mandatory Security Key
2. Enable the Test Mode
3. Select the Descriptor — None, Dynamic Descriptor, Use Static value (next field)
   1. Fill in the Static Descriptor

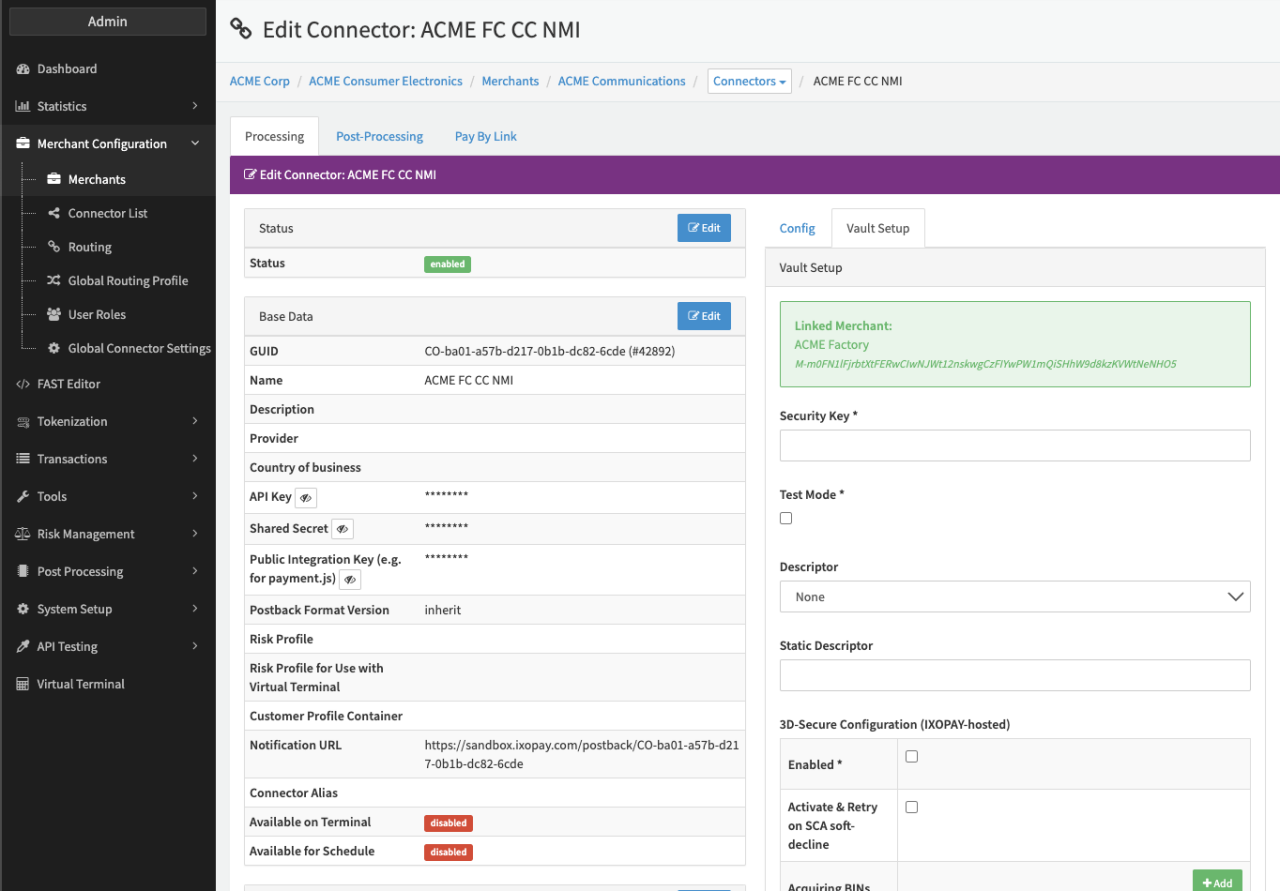

PCI Vault Configuration - Creditcard NMI
